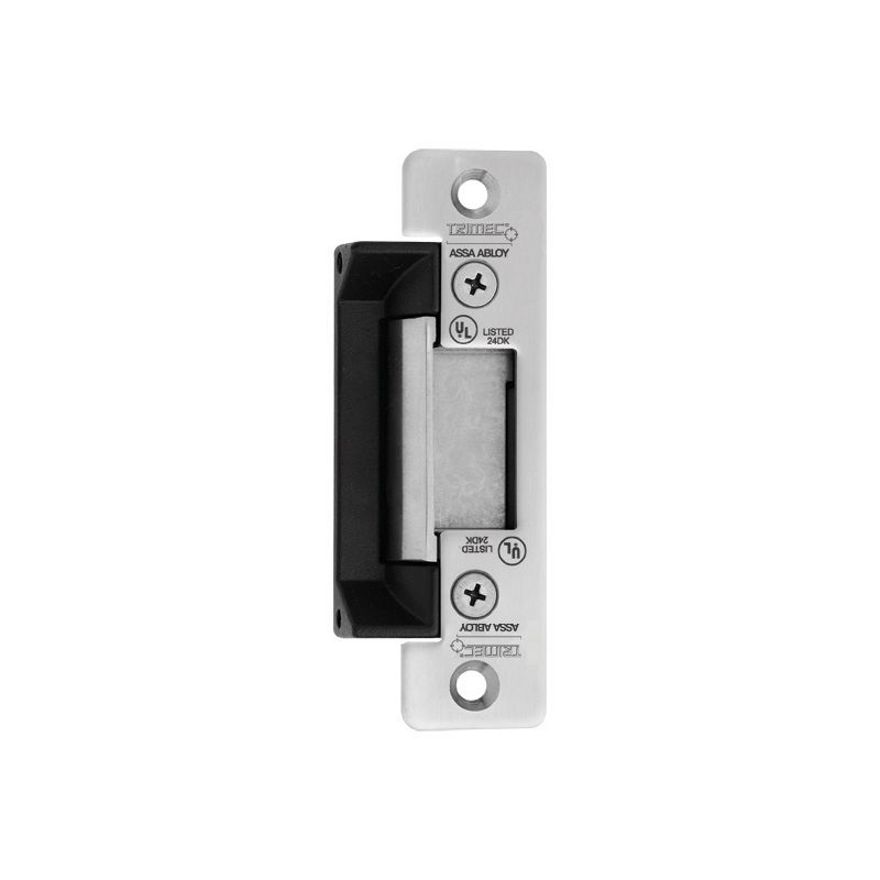

Trimec ES100 Series Electric Strike

Fail safe/fail secure changeable on site.

The ES100 is a cost efficient robust electric strike with a solid construction of one-piece cast aluminium body and stainless steel striker. Having a deeper than normal strike-keeper area, ES100 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions.

Extension lips are available to accommodate the installation of electric strikes on door frames with different thickness. The ES100 product range of patented electric strikes are suitable for use with all access control installations where flexibility, security and lower cost are required.

Key Features

  • All models IP56 Weather resistant
  • Fail safe/fail secure changeable on site
  • Stainless steel striker for extra strength and durability
  • Stainless steel locking pins
  • Multi Voltage 12Vdc & 24Vdc
  • Optional mounting kit
  • Installation template
  • Suitable For 15mm latch with a 3mm door gap
  • TRICARE® 5 Year Warranty

Applications

  • Exposed areas
  • High traffic areas
  • Open in/open out doors
  • Suitable for use with all access control systems

Standards and Compliance

  • For any fire rated applications of this product, the fire certification should be investigated and examined to ensure the suitability & configuration of this product for that particular door assembly. Contact the supplier for further details, such as certifications, door type and door thickness etc. that may affect the fire door suitability and rating.
  • Approved to UL1034 (highest level)
  • CE approved (EMC, ROHS & REACH)
  • Regulatory Compliance Mark (RCM) approved
  • Weather Resistant (IP56)

Trimec ES100 Series Electric Strike


Voltage
12Vdc & 24Vdc

Current
250 mA @ 12Vdc - 125mA @ 24Vdc

Solenoid
Solenoids are rated for continuous use.

Monitoring
None

Holding Force
680 kg Static Strength Rating

Endurance
Cycle tested to 1,000,000 operations

Environment
Operational temperature range -20°C to + 60°C
Weather resistant construction Standard. (IP56)

Body
Cast Aluminium Construction

Keeper
Stainless Steel

Latch
Suitable for 15mm latchbolt with 3mm door gap

Specification Statement
Where Power to Lock and Power to Open functions may be required in the same building, the strike must be interchangeable from either "Power to Lock" or "Power to Open" on site. The electric strike should not consume current greater than 250 mA @ 12Vdc - 125mA @ 24Vdc and have a solenoid suitable for continuous use. The strike should have a minimum holding force of 680kg, and an endurance rating of 1 million cycles.

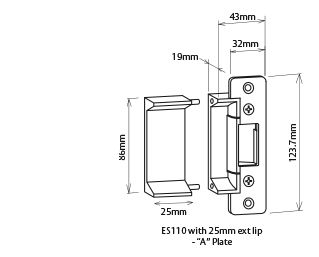

Dimensions



  • Trimec Electric Strikes Catalogue Section(PDF, 1 MB)
  • ES100 ES110 - Installation Instructions(PDF, 4 MB)
ItemPart number
ES101 12/24VDC PTL W/Res A-Type Rnd Cnr S/Steel F/Plate With Extension Lip Holes110101-030M
ES101 12/24VDC PTL W/Res A-Type Rnd Cnr S/Steel F/Plate Lipless110101-070M
Accessories - 15mm Extension Lip (26mm total)220100-506
Accessories - 25mm Extension Lip (36mm total)220100-507
Accessories - 50mm Extension Lip (61mm total)220100-508
Accessories - Mounting Kit220200-518
Faceplates - A (ANSI Short) (Refer to catalogue)210100-544
Faceplates - B (ANSI Long) (Refer to catalogue)210100-530
Faceplates - J (Refer to catalogue)210100-523
Faceplates - F (UK Sash RH) [DIN Left] (Refer to catalogue)210100-528
Faceplates - G (UK Sash LH) [DIN Right] (Refer to catalogue)210100-527
