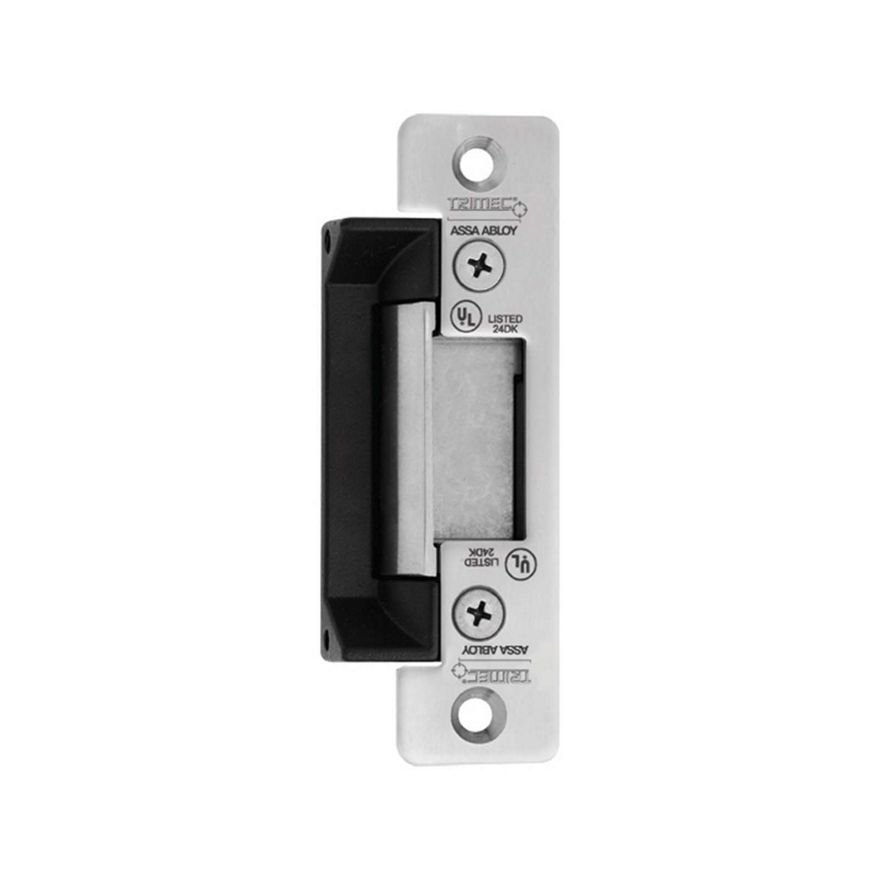

Trimec ES110 Series Electric Strike

Fail safe/fail secure changeable on site.

The ES110 is a cost efficient robust electric strike with a solid construction of one-piece cast aluminium body and stainless steel striker. Having a deeper than normal strike-keeper area, ES110 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions.

Extension lips are available to accommodate the installation of electric strikes on door frames with different thickness. The ES110 product range of patented electric strikes are suitable for use with all access control installations where flexibility, security and lower cost are required.

Key Features

Fail safe/fail secure changeable on site
Stainless steel striker for extra strength and durability
Stainless steel locking pins
Multi Voltage 12VDC & 24VDC
Optional mounting kit
Installation template
Suitable For 18mm latch with a 3mm door gap
TRICARE^® 5 Year Warranty

Applications

Exposed areas
High traffic areas
Open in/open out doors
Suitable for use with all access control systems

Standards and Compliance
CE & UKCA certified for Europe under EN 14846 for the Construction Product Regulations (CPR).

Fire rated up to 240 minutes (EU/UK) - EN14846, Grade F (120 minutes or greater).
Successfully fire rated up to 4 hours on fire door assemblies in accordance with BS/EN 1634-1.

Fire rated up to 120 minutes (AU).
Successfully fire rated up to 2 hours on fire door assemblies in accordance with AS1905.1 (Part 1: Fire resistant door sets).

For any fire-rated applications of this product, the fire certification should be investigated and examined to ensure the suitability and configuration of this product for that particular door assembly. Contact the supplier for further details, such as certifications, door type and door thickness, etc., that may affect the fire door suitability and rating.

CE & UKCA compliance for Europe (CPR, EMC, RoHS, WEEE, REACH).

Voltage
12Vdc & 24Vdc

Current
250 mA @ 12Vdc - 125mA @ 24Vdc

Solenoid
Solenoids are rated for continuous use.

Monitoring
None

Holding Force
680 kg Static Strength Rating

Environment
Operational temperature range -20°C to + 60°C

Body
Cast Aluminium Construction

Keeper
Stainless Steel

Latch
Suitable for 18mm latchbolt with 3mm door gap

Specification Statement

Where Power to Lock and Power to Open functions may be required in the same building, the strike must be interchangeable from either "Power to Lock" or "Power to Open" on site. The electric strike should not consume current greater than 250 mA @ 12Vdc - 125mA @ 24Vdc and have a solenoid suitable for continuous use. The strike should have a minimum holding force of 680kg. Certifications must include CE, RCM, and at least a 2-hour minimum fire rating.

Dimensions

Item	Part number
ES111 12/24VDC PTL W/RES A-TYPE RND CNR S/STEEL F/PLATE & H/RND	110111-060M
ES111 12/24VDC PTL W/RES H-TYPE SQ CNR S/STEEL F/PLATE LIPLESS	110111-150M
ES111 12/24VDC PTL W/RES-H-TYPE SQ CNR S/STEEL F/PLATE & H/RND	110111-160M
ES111 12/24VDC PTL W/RES A-TYPE RND CNR S/STEEL F/PLATE LIPLESS & H/RND	110111-190M
ES112 12/24VDC PTO W/RES A-TYPE RND CNR S/STEEL F/PLATE & H/RND	110112-060M
ES112 12/24VDC PTO W/RES H-TYPE SQ CNR S/STEEL F/PLATE	110112-140M
Accessories - 15mm Extension Lip (26mm total)	220110-502
Accessories - 25mm Extension Lip (36mm total)	220110-503
Accessories - 50mm Extension Lip (61mm total)	220110-504
Accessories - Mounting Kit	220200-518
Faceplates - A (ANSI Short) (Refer to catalogue)	210100-544
Faceplates - B (ANSI Long) (Refer to catalogue)	210100-530
Faceplates - J (Refer to catalogue)	210100-523
Faceplates - F (UK Sash RH) [DIN Left] (Refer to catalogue)	210100-528
Faceplates - G (UK Sash LH) [DIN Right] (Refer to catalogue)	210100-527
