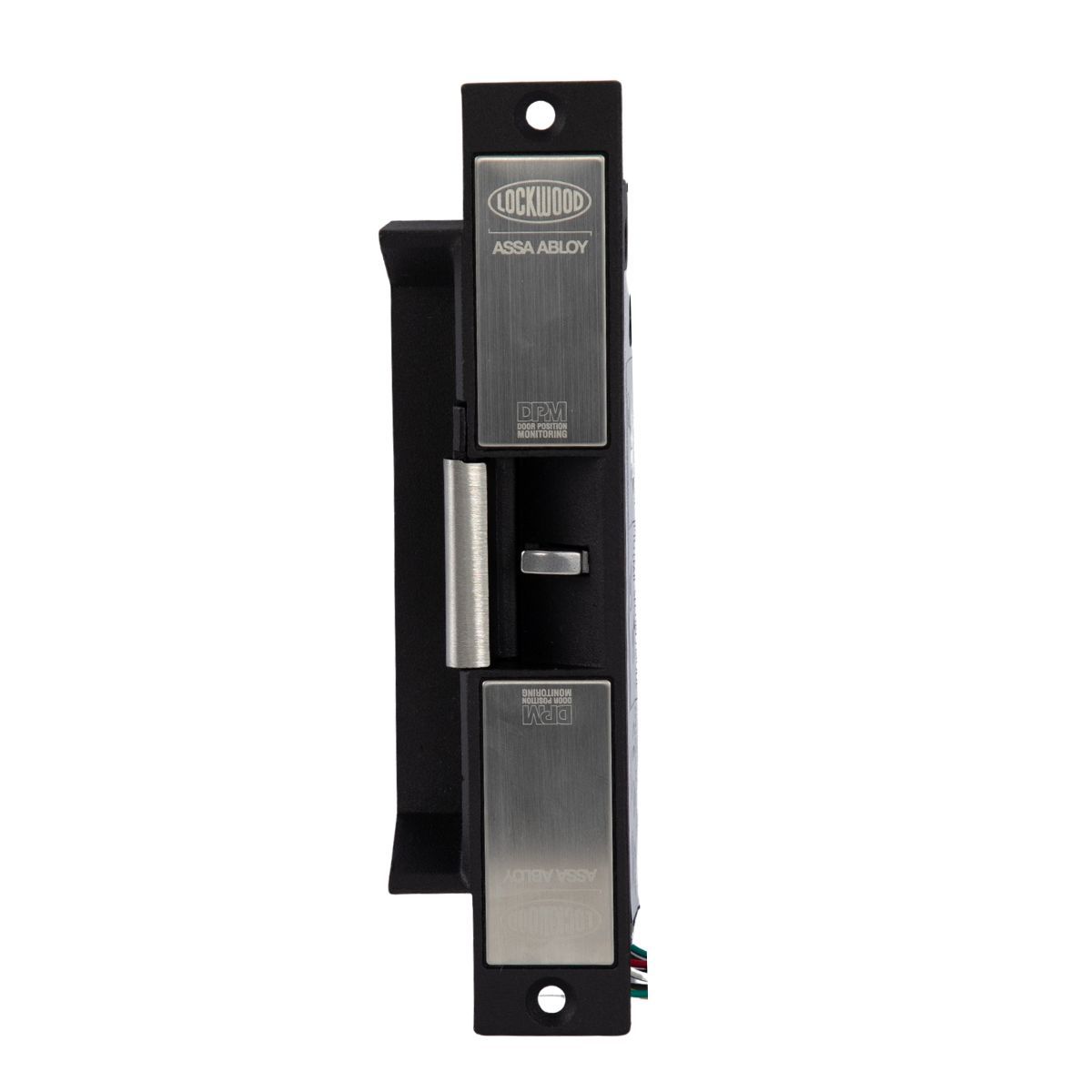

Trimec ES2100 Series Monitored Electric Strike

Fail safe/fail secure changeable on site.

The ES2100 is the latest product to join the iconic Trimec range of electric strikes. Tested in accordance with Australian standards this strike offers superior strength, and is durability tested to 1.5 million operations. Standard features include variable voltage, patented field selectable fail safe/fail secure mode change and a unique integrated door position switch.

Integrated Door Position Switch
The ES2100 now offers a unique new monitoring feature not available in other strikes on the market today. The strike has an integrated reed switch that when combined with a specialised Lockwood mortice lock, provides door position monitoring. The strike is supplied with a standard door magnet for use with cylindrical latches. Lockwood mortice locks and face plate accessories are sold seperatley.

Key Features

  • Patented field selectable fail safe/fail secure
  • Multi voltage 10VDC to 30VDC
  • Fully monitored
  • Integrated door position (reed) switch
  • Solenoid/Locked
  • Latch position
  • 1000kg holding force
  • Fire Rated
  • Mounting tabs as supplied standard
  • TRICARE® 5 Year Warranty

Applications

  • High traffic areas
  • Fire rated door sets
  • Open in/open out doors
  • Suitable for use with all access control systems
  • Doors requiring additional door position monitoring

Standards and Compliance

  • (Security) Australian Lock Standard (AS4145.2.2008)
  • (Durability) Australian Lock Standard (AS4145.2.2008)
  • Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005. No current certificates.
  • For any fire rated applications of this product, the fire certification should be investigated and examined to ensure the suitability & configuration of this product for that particular door assembly. Contact the supplier for further details, such as certifications, door type and door thickness etc. that may affect the fire door suitability and rating.
  • CE approved (EMC, ROHS & REACH)
  • Regulatory Compliance Mark (RCM) approved
  • SCEC Approved for Security Level 3
