• Voltage
    12 or 24Vdc

    Current
    175 mA @ 12Vdc - 88 mA @ 24Vdc

    Solenoids
    Solenoids are rated for continuous use

    Monitoring
    None

    Holding Force
    850kg Static Strength Rating

    Endurance
    Cycle tested to 1,000,000 operations

    Latch
    Suitable for 15mm latch bolt with 3mm door gap

    Environment
    Operational temperature range -20°C to +60°C

    Body
    Solid Stainless Steel Construction

    Keeper
    Stainless Steel

    Specification Statement
    The strike should be constructed of stainless steel, have a minimum holding force of 850kg and have an endurance rating of 1 million cycles. The one strike must be changeable from fail safe to fail secure on site where required. The strike should not consume current greater than 175mA at 12Vdc and have a solenoid rated for continuous use.

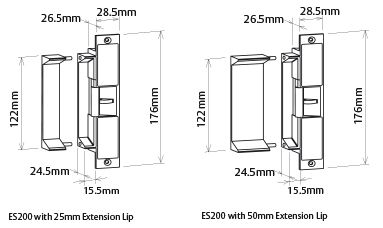

    Dimensions



  • ItemPart number
    12V Fail Safe Electric Strike110201-000
    12V Fail Secure Electric Strike110202-000
    24V Fail Safe Electric Strike110203-000
    Accessories - 13mm Rebate Plate210100-541
    Accessories - Mounting Kit220200-519
    Note: If Extension Lips are required, use ES2100 Electric Strike (Refer to catalogue)
